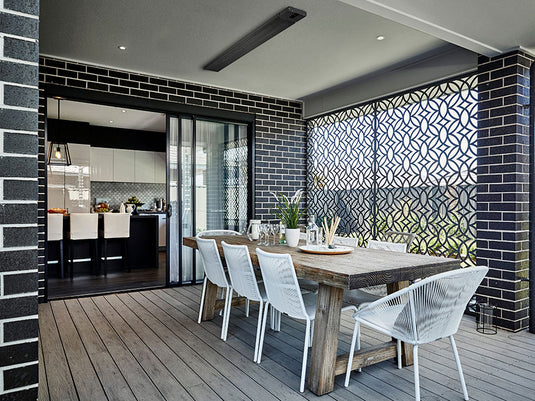

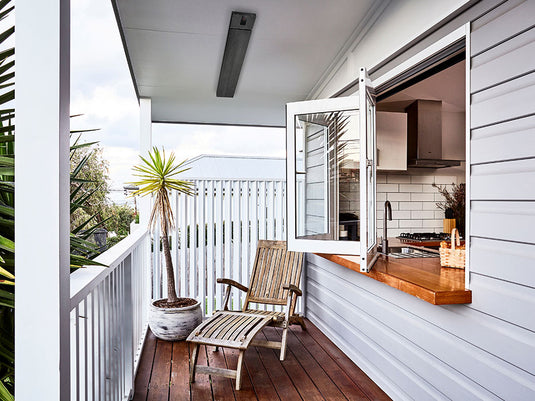

The HEATSTRIP® Classic with Remote & App Smart Electric Radiant Heater combines the slim, all-black design of the Classic series with built-in remote, app, and smart-home control. Designed for indoor and protected outdoor spaces, it provides targeted radiant heating for covered patios, balconies, porches, verandahs, alfresco dining areas, and difficult-to-heat indoor environments.
Available in 2400W and 3200W models, the heater can be controlled with the included handheld remote or compatible mobile app using Bluetooth and Wi-Fi. It also supports compatible Google and Amazon smart-home platforms for convenient connected control.
Features
- Remote and app control with Bluetooth and Wi-Fi connectivity.
- Compatible with supported Google and Amazon smart-home platforms.
- Three adjustable heat levels for greater control over radiant output.
- Adjustable 0–24 hour countdown timer.
- Two models available: X-THH2400-AA (2400W) and X-THH3200-AA (3200W).
- Slim, all-black design for modern indoor and protected outdoor spaces.
- High-temperature ceramic-coated extruded alloy construction.
- IP55-rated protection.
- A pair of ZBRAK-113B adjustable standard mounting brackets is included.
- Standard brackets support ceiling or angled wall mounting and preset parallel, 22.5°, and 45° positions.
- Compatible with optional flush-mount enclosures and extension poles.
- Manufacturer warranty: 3 years residential and 2 years commercial, subject to the manufacturer's warranty terms.
Product Specifications
| Specification | 2400W Model | 3200W Model |
|---|---|---|
| Model | X-THH2400-AA | X-THH3200-AA |
| Voltage | 240V | 240V |
| Power | 2400W | 3200W |
| Current | 10A | 13.3A |
| Frequency / Phase | 50–60Hz, single phase | 50–60Hz, single phase |
| Dimensions | 1371 × 165 × 48mm (53 31/32 × 6 1/2 × 1 29/32in) | 1780 × 165 × 48mm (70 1/16 × 6 1/2 × 1 29/32in) |
| Weight | 7kg / 15lb | 9kg / 20lb |
| Electrical Connection | Gang box / fixed electrical installation | Gang box / fixed electrical installation |
| Manufacturer-Listed Heating Area | 4–5m² / 43–54ft² | 5–6m² / 54–65ft² |
| Protection Rating | IP55 | IP55 |
| Approval | ETL | ETL |
Smart Control & Remote Functions
The included remote provides direct control of the heater without requiring a phone or Wi-Fi connection.

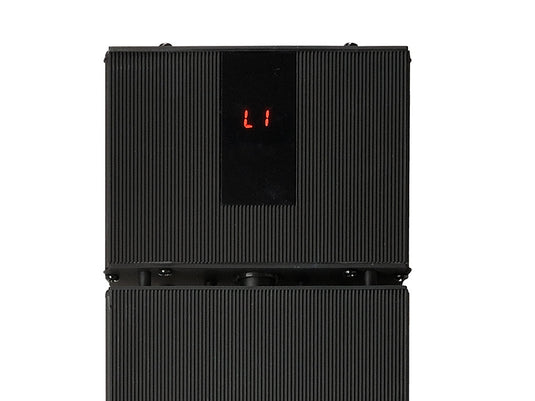

- Select between three heat levels: L1, L2, and L3.
- Set an adjustable 1–24 hour countdown timer.
- Turn the heater on or off directly from the remote.
- Use the compatible mobile app for connected control through Bluetooth and Wi-Fi.
- Connect with supported Google and Amazon smart-home platforms.
The handheld remote requires line-of-sight operation and should be kept away from wet locations.
Which HEATSTRIP Classic with Remote & App Model Should I Choose?
The X-THH2400-AA (2400W) has a manufacturer-listed heating area of approximately 43–54ft² and is suited to smaller spot-heating zones.
The longer X-THH3200-AA (3200W) provides an approximate 54–65ft² heating area and a larger radiant footprint for longer dining, seating, or work areas.
Actual heating performance depends on mounting height, heater orientation, wind exposure, enclosure, and the location of occupants within the radiant footprint.
Coverage Based on Installation Environment
For direct overhead mounting, HEATSTRIP lists the following approximate coverage:
| Model | Indoor Protected | Outdoor Enclosed | Outdoor Exposed |
|---|---|---|---|
| X-THH2400-AA | 6m² / 65ft² | 4.8m² / 52ft² | 4m² / 43ft² |
| X-THH3200-AA | 8m² / 86ft² | 6.4m² / 69ft² | 5.3m² / 57ft² |
These figures are approximate planning guides. Angled wall mounting can reduce heating coverage by up to 40% compared with direct overhead mounting.
For protected outdoor areas, reducing exposure to prevailing wind with walls, screens, or café blinds can improve heating effectiveness.
Positioning
For effective spot heating, position the HEATSTRIP® Classic with Remote & App directly above the occupied area whenever possible, such as over a dining table, seating area, or workstation.
The manufacturer's recommended mounting height is 2.3–2.5m (approximately 7.5–8.2ft). The maximum recommended mounting height is 2.7m (approximately 8.9ft).
Installation height, electrical requirements, and clearances must follow the current product manual and all applicable local codes. The US/Canada product manual includes country-specific minimum installation-height requirements.

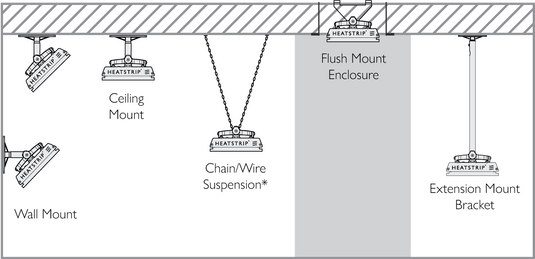

Mounting Options
The included ZBRAK-113B mounting brackets allow standard ceiling and angled wall installations.
Additional installation options include:
- Ceiling-mounted directly above the heated area.
- Angled wall-mounted for targeted radiant heating.
- Flush-mounted using the compatible optional enclosure.
- Suspended installation using compatible extension poles or suitable chain/wire hardware.
- Beam or pole mounting where permitted by the installation instructions.
- Multiple heaters installed end-to-end for longer occupied areas.
For installations above the recommended mounting range, compatible extension poles can lower the heater closer to the ideal height.
Chain/wire is not included.
Prefer the Classic design without built-in remote and app controls? View the HEATSTRIP Classic Slimline Electric Radiant Heater.
Downloads
- Heatstrip Brochure [Download]
- X-THH-AA Product Manual [Download]
- X-THH-AA Flush Mounting Manual [Download]
Use the current model-specific manual for electrical installation, mounting clearances, accessory compatibility, and safety requirements.
