The HEATSTRIP® Portable 32,000 BTU Freestanding Propane Gas Patio Heater with Stand delivers powerful radiant heat in a movable, freestanding design for residential and commercial outdoor spaces.

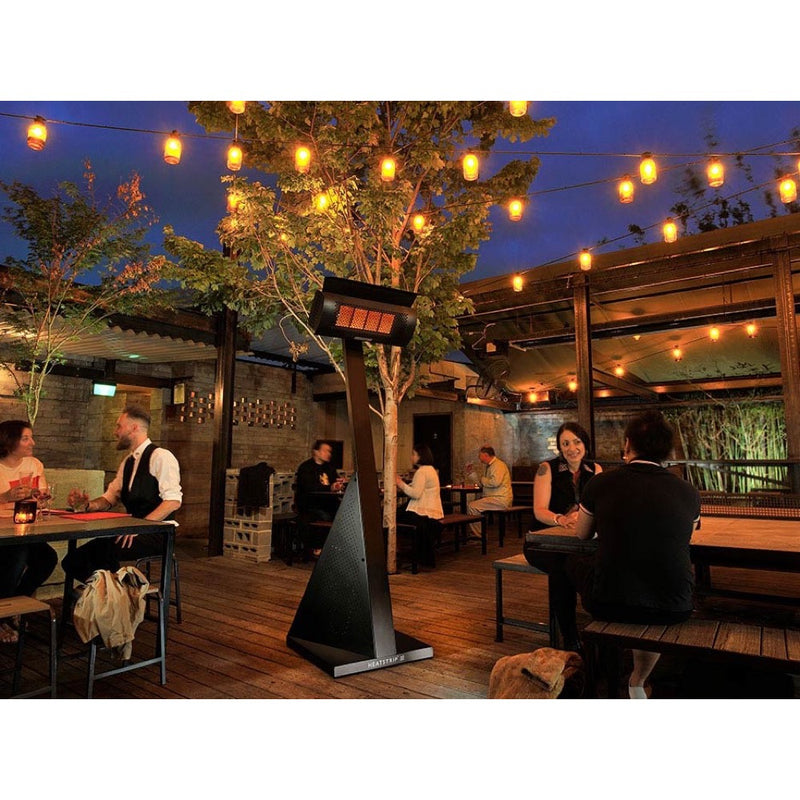

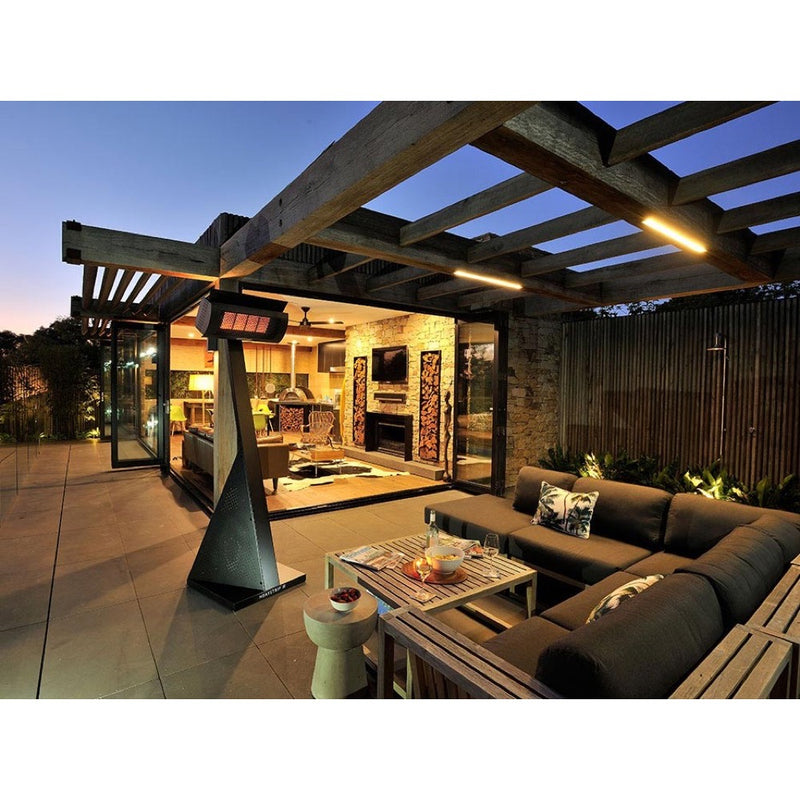

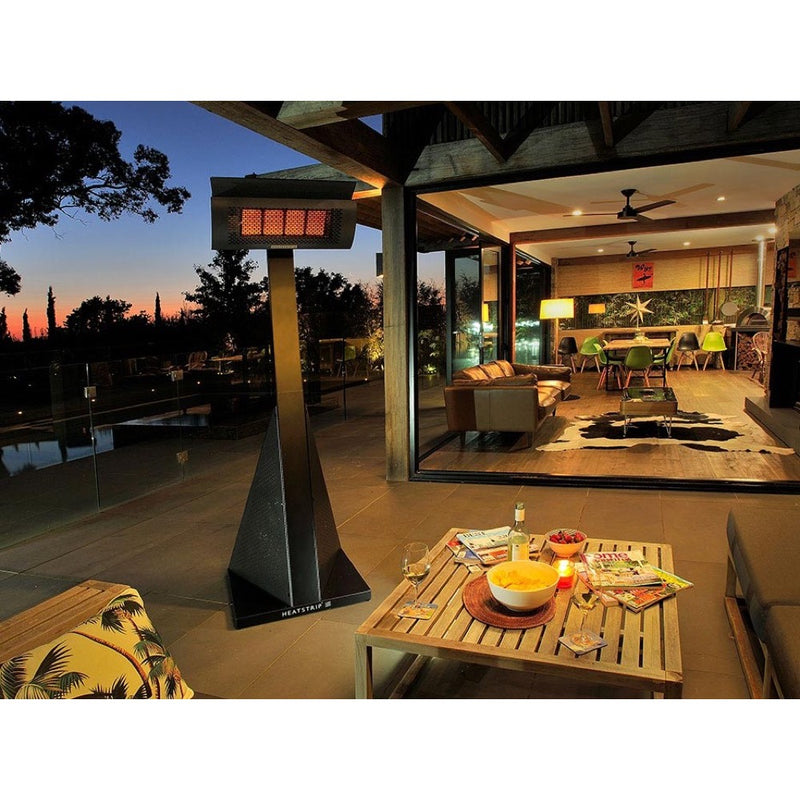

With a 32,225 BTU commercial-quality four-tile ceramic burner, this portable propane patio heater provides targeted warmth for patios, outdoor dining areas, balconies, courtyards, hospitality spaces, and other well-ventilated outdoor areas.

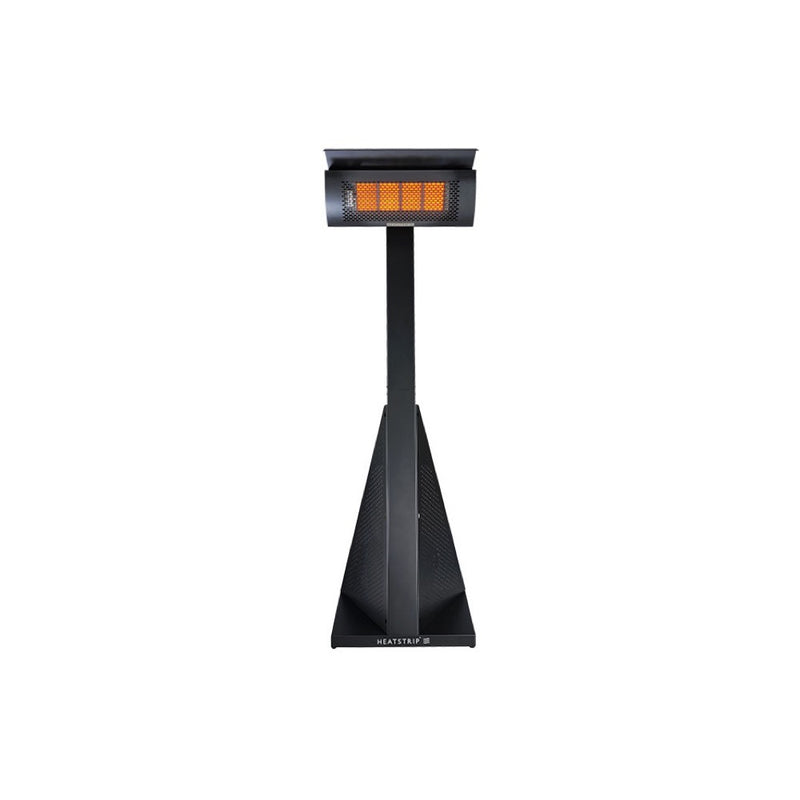

The complete system includes the X-DGR32PLP-HEAD heater head and X-DGR32PLP-STAND wheeled stand, with the propane cylinder and gas lines concealed inside the base for a clean, streamlined appearance.
Features
- 32,225 BTU radiant gas heating output.

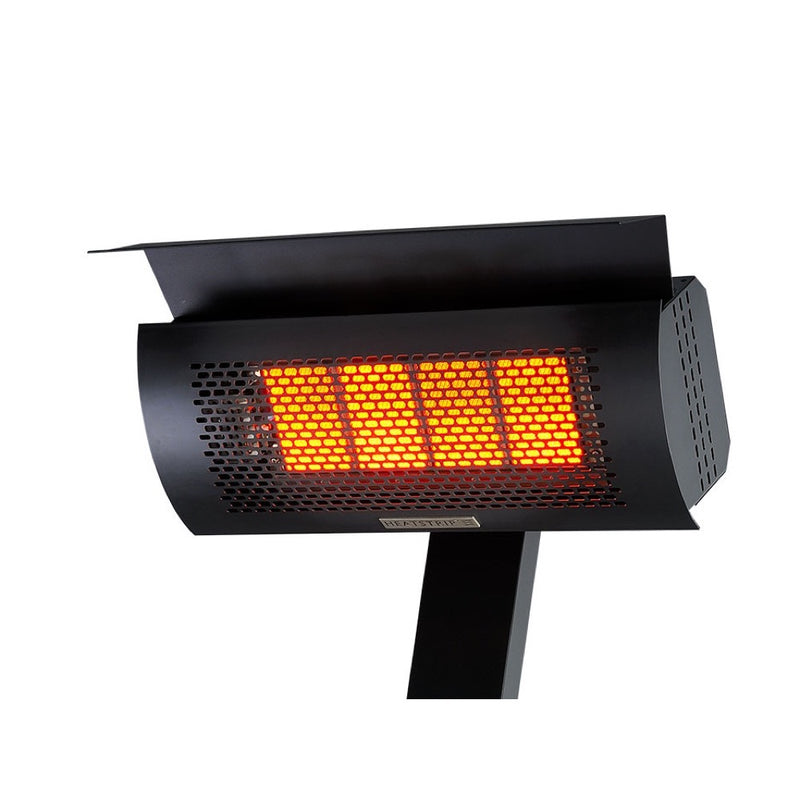

- Four-tile commercial-quality ceramic burner.
- Complete freestanding system with heater head and portable stand.
- Designed for use with a standard 20 lb propane (LPG) cylinder.
- Propane cylinder is concealed within the stand for a cleaner appearance.

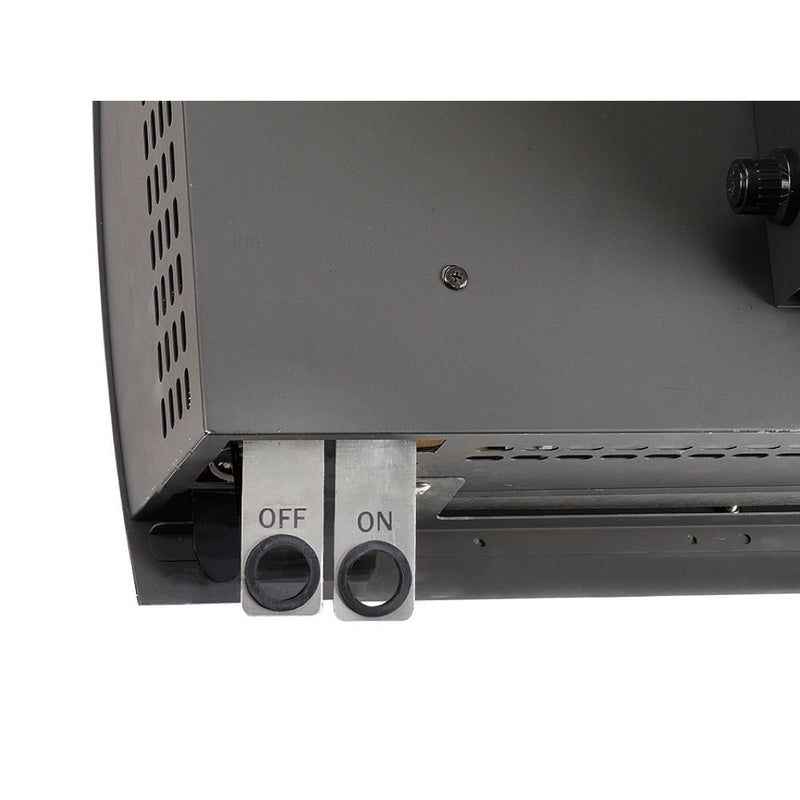

- Electronic finger-pull ignition for convenient operation.
- Built-in tilt safety switch.
- Flame failure device automatically shuts off gas if the flame is lost.
- Protective grille and heat reflector included as standard.
- Built-in wheels make the heater easy to reposition or store.
- Manufacturer-rated wind protection up to approximately 10 mph / 16 km/h.
- Suitable for residential and commercial outdoor applications.
- Manufacturer-listed heating area: approximately 172 ft² / 16 m².
- Manufacturer warranty applies; refer to the current North American product manual for warranty terms and coverage.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer Components | X-DGR32PLP-HEAD + X-DGR32PLP-STAND |
| Fuel Type | Propane / LPG |
| Heat Output | 32,225 BTU/hr |
| Burner | 4 ceramic tiles |
| Ignition | Electronic finger pull |
| Heating Area | Approx. 16m² / 172ft² |
| Dimensions | 650 × 670 × 2118mm / approx. 25 5/8 × 26 3/8 × 83 3/8in |
| Weight | 31.5kg / 69lb |
| Gas Cylinder | Standard 20 lb propane cylinder |
| Cylinder Connection | QCC1 |
| Heater Head Material | 420 stainless steel with high-temperature paint coating |
| Stand Material | E-coated mild steel with powder-coated finish |
| Safety Features | Tilt safety switch and flame failure device |
| Mobility | Built-in wheels |
| Application | Outdoor, well-ventilated residential and commercial spaces |
What's Included
The complete heater system includes:
- X-DGR32PLP-HEAD propane heater head
- X-DGR32PLP-STAND wheeled freestanding base
- Protective grille
- Heat reflector
- Manufacturer-specified regulator and hose assembly
- Required heater assembly components
20 lb propane cylinder is not included.
Heating Area & Radiant Footprint
HEATSTRIP lists an approximate heating area of 16m² / 172ft² for the Portable LPG heater.
The manufacturer also illustrates a radiant footprint extending approximately 5m / 16ft, providing broad targeted warmth around the heater.
Actual heating performance will vary depending on ambient temperature, wind, positioning, surrounding structures, and how exposed the area is.
Where Is the HEATSTRIP Portable LPG Heater Best Used?
This freestanding propane patio heater is designed for flexible spot heating where permanent electrical or gas-heater installation is not practical.
Typical applications include:
- Residential patios
- Outdoor dining areas
- Courtyards
- Balconies
- Outdoor kitchens
- Restaurants and cafés
- Hospitality areas
- Commercial terraces
- Event and entertaining spaces
The built-in wheels allow the heater to be moved between heating zones as requirements change.
Propane Tank & Operation
The North American model is designed for use with a standard 20 lb LP gas cylinder equipped with an approved OPD overfill-prevention device.

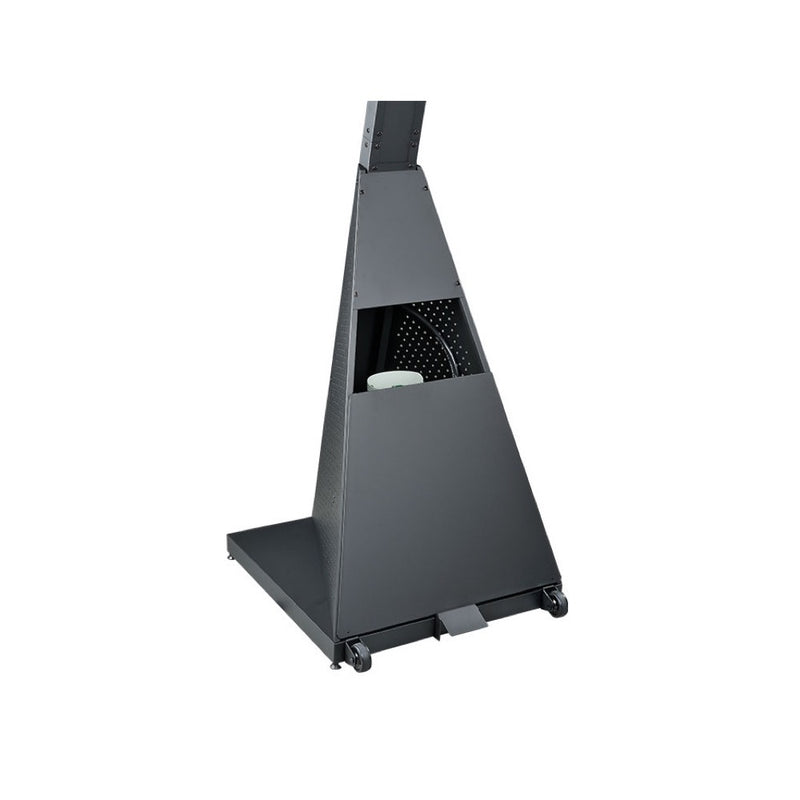

The propane cylinder is positioned inside the stand and secured using the integrated tank restraint.
The heater uses an electronic finger-pull ignition system and incorporates both a tilt safety switch and flame failure device for safer operation.
Always use the manufacturer-specified regulator and hose assembly and follow the current product manual when connecting, leak-testing, lighting, operating, or disconnecting the heater.
Placement & Safety
The HEATSTRIP Portable LPG heater is intended for use in a well-ventilated outdoor area.
According to the North American installation manual, the heater should not be positioned:
- In open locations subject to rain.
- Near combustible materials.
- Where heat could damage gas cylinders or gas lines.
- Where adequate combustion or ventilation airflow is restricted.
Maintain all manufacturer-required clearances and follow applicable local gas and fire-safety regulations.
With the standard heat reflector installed, the current HEATSTRIP brochure specifies approximately 500mm / 20in overhead clearance.
For locations requiring reduced overhead clearance, the optional X-DGRSHIELD heat shield can reduce the required clearance to approximately 300mm / 12in when installed according to manufacturer instructions.
Optional Accessories
Compatible accessories include:
- X-TGHCOVER — protective cover for the complete heater and stand.
- X-DGRSHIELD — heat shield for reduced overhead-clearance installations.
Downloads
- Heatstrip Brochure [Download]
- Heatstrip Gas Brochure [Download]
- Portable X-DGR32PLP Manual [Download]
