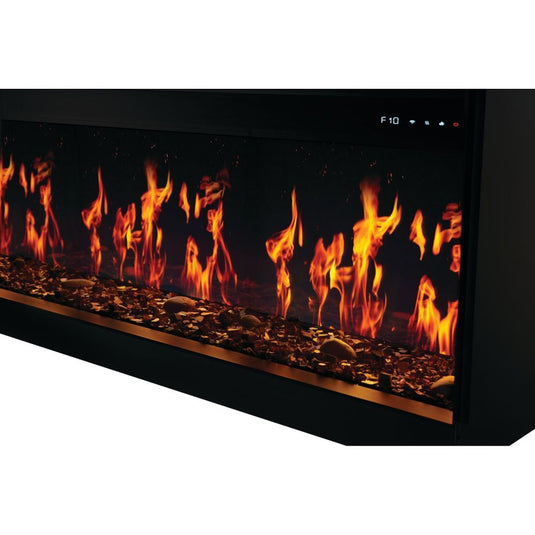

Bring a remarkably lifelike fire experience into your home with the Napoleon Luminex 65 LCD Built-In Electric Fireplace. Designed around advanced LCD flame technology, this 65-inch electric fireplace pairs realistic fire visuals with integrated speakers that reproduce the distinctive sounds of a burning fire. Its contemporary linear design creates an inviting focal point without requiring a gas line, chimney, or venting system.

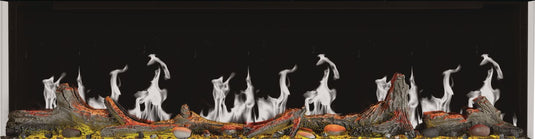

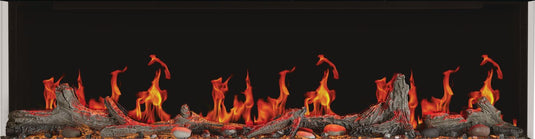

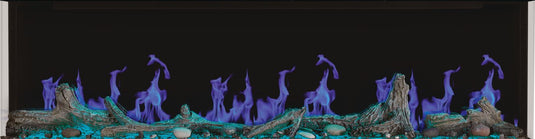

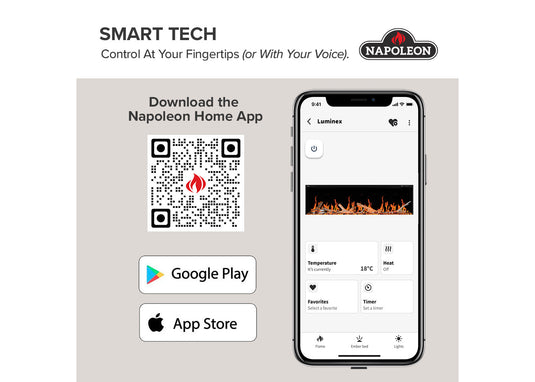

Personalize your fireplace with three distinct flame patterns, each available in six colors. Choose from 13 preset ember bed colors and 13 top light colors, or explore additional lighting combinations through the Napoleon Home App. The included premium remote provides convenient control over the flames, sound, heating, thermostat, and scheduling functions. Compatible Google Home and Amazon Alexa devices offer another way to manage select fireplace settings.

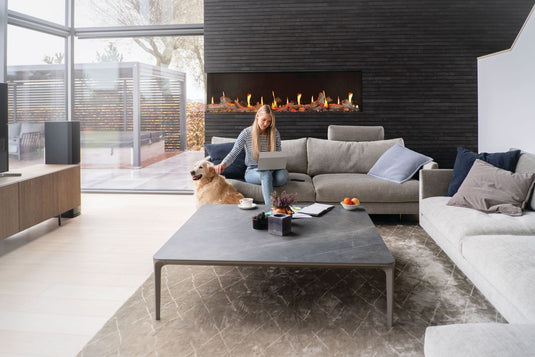

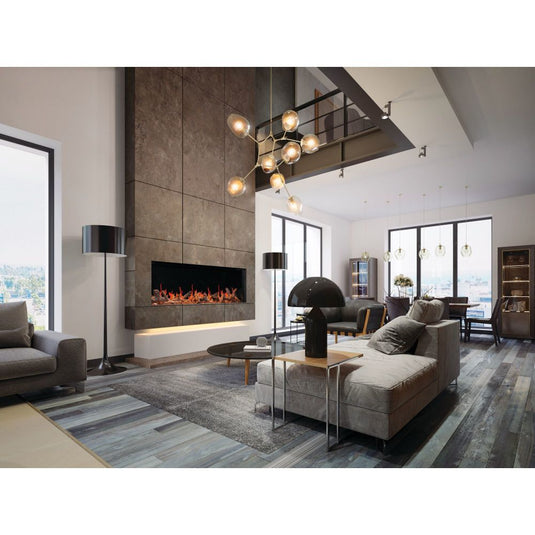

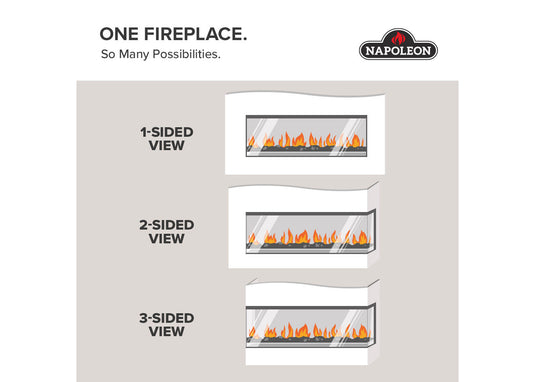

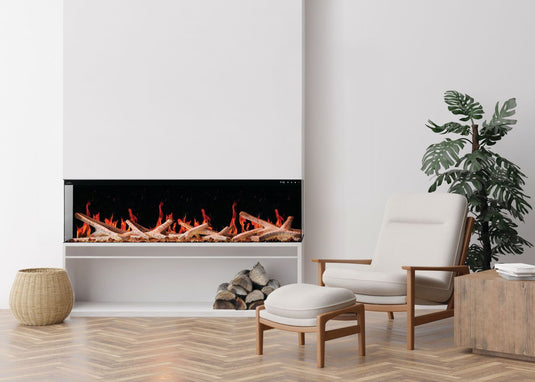

The Luminex 65 is designed for fully recessed installation and offers three viewing configurations: a traditional single-sided fireplace, a two-sided corner installation, or an expansive three-sided display. Its dual-voltage heating system delivers up to 5,000 BTU/h at 120V or 10,000 BTU/h at 240V. The included Beach Fire logs and Woodland decorative media complete the standard firebox presentation, while the flame display can also be enjoyed without heat.
Features
- 65-inch built-in electric fireplace featuring advanced LCD flame technology.

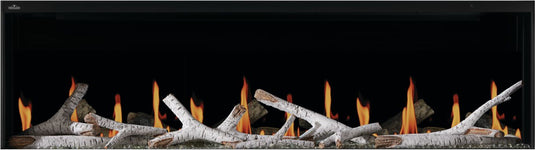

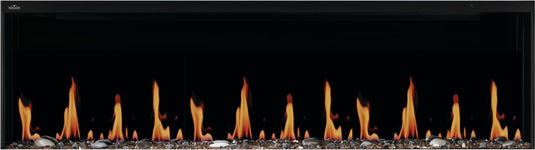

- Three realistic flame patterns with six selectable colors for each pattern.
- Integrated speakers reproduce distinctive crackling fire sounds for an immersive experience.

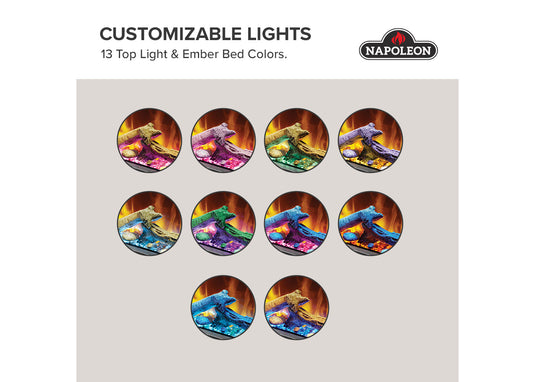

- 13 preset ember bed colors and 13 top light colors for personalized ambient lighting.
- Additional lighting customization available through the Napoleon Home App.

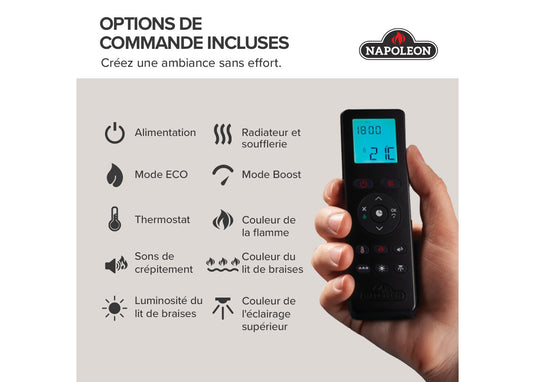

- Premium multifunction remote control included.
- Compatible with Google Home and Amazon Alexa for voice control of select functions.
- Fully recessed installation with single-sided, two-sided, or three-sided viewing configurations.
- Tinted tempered glass helps enhance flame visibility and contrast.
- ECO heating mode operates at reduced heat output to conserve energy.
- BOOST mode provides maximum heating with increased blower speed.
- Dual-voltage heating delivers up to 5,000 BTU/h at 120V or 10,000 BTU/h at 240V.
- Flame-only operation allows enjoyment of the fire display without supplemental heat.
- Adjustable thermostat and programmable scheduling functions.
- Beach Fire log set and Woodland decorative media kit included.
- No gas connection, chimney, or venting required.
- Backed by Napoleon's 5-Year Limited Warranty.
Product Specifications
- Brand: Napoleon
- Series: Luminex LCD
- Model Number: NEFL65LCD-3SV
- Product Type: Built-In Linear Electric Fireplace
- Nominal Size: 65 Inches
- Installation Type: Fully Recessed / Built-In
- Viewing Configurations: Single-Sided, Two-Sided, or Three-Sided
- Flame Technology: LCD
- Flame Patterns: 3
- Flame Colors: 6 Per Flame Pattern
- Ember Bed Colors: 13 Preset Options
- Top Light Colors: 13 Preset Options
- Sound: Built-In Fire Sound Speakers
- Electrical Supply: 120V / 240V AC, 60Hz
- Maximum Power Consumption: 1,500W (120V) / 3,000W (240V)
- Maximum Heat Output: 5,000 BTU/h (120V) / 10,000 BTU/h (240V)
- Electrical Connection: Hardwired Only
- Electrical Circuit: Dedicated 15-Amp Grounded Circuit

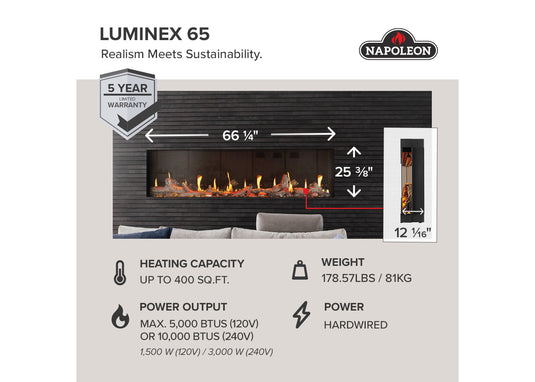

- Appliance Body Width: 65-1/16 Inches
- Maximum Overall Width Including Outer Trim: 66-1/4 Inches
- Appliance Height: 25-3/8 Inches
- Appliance Depth: 12-1/16 Inches
- Net Weight: 178.57 lbs (81 kg)
- Glass: Tinted Tempered Glass
- Controls: Included Remote Control, Napoleon Home App, and Compatible Voice Assistants
- Certification: CSA 22.2 No. 46 / UL 2021
- Application: Indoor Use Only
- Warranty: Napoleon 5-Year Limited Warranty
Framing and Installation Dimensions
- Minimum Framing Height: 25-7/8 Inches
- Minimum Framing Depth: 12-1/2 Inches
- Single-Sided Installation Framing Width: 65-9/16 Inches
- Two-Sided or Three-Sided Installation Framing Width: 65-1/16 Inches
Framing requirements vary by viewing configuration. Refer to the Napoleon installation manual for complete framing instructions, finishing requirements, and clearances before construction.
What's Included
- Napoleon Luminex 65 LCD Built-In Electric Fireplace (NEFL65LCD-3SV)
- Beach Fire Log Set
- Woodland Decorative Media Kit
- Premium Remote Control
- Manufacturer-Supplied Mounting and Installation Hardware
- Installation and Operation Manual
Installation and Electrical Requirements

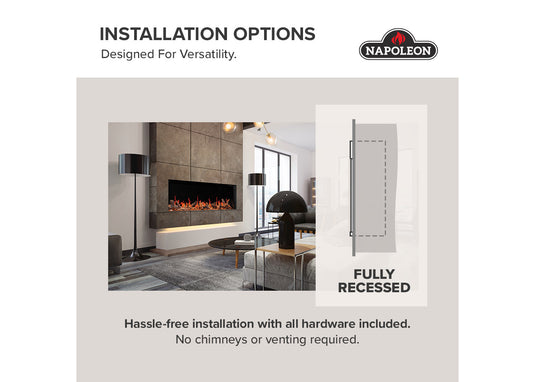

The Napoleon Luminex 65 LCD is intended for fully recessed indoor installation. The fireplace must be hardwired directly to a properly grounded electrical circuit by a qualified electrician and cannot be operated using a standard plug-in connection. The selected 120V or 240V electrical configuration determines the available heating output. All framing, finishing materials, and electrical installation must comply with the manufacturer's instructions and applicable local codes.
Downloads
- Installation & Operation Manual – Napoleon Luminex 65 LCD (NEFL65LCD-3SV) [Download]
- Napoleon Luminex LCD – Product Brochure [Download]
