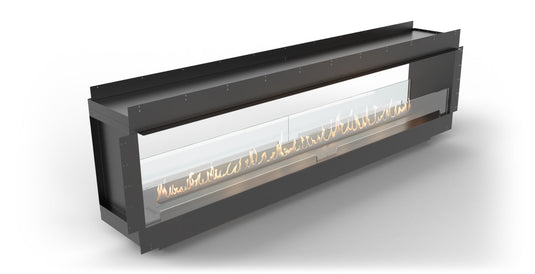

Planika Firebox 106” Tunnel Fireplace with FLA4 98” Burner

The Planika Firebox 106” Tunnel Fireplace is a premium see-through bioethanol fireplace with flames visible from both front and back sides, offering a striking tunnel effect for open-plan interiors. Featuring Planika’s patented BEV Technology® (Burning Ethanol Vapours), it provides clean, eco-friendly indoor heating with minimal maintenance.

Equipped with the FLA4 98” bioethanol burner, this fireplace ensures stable, consistent flames and can be controlled via remote, mobile app, or concealed touch panel for flame adjustment, fuel monitoring, and safe external pump refilling. Its steel and toughened glass construction with a black powder-coated finish makes it ideal for room-dividing installations, allowing a visual connection between spaces while enhancing the modern aesthetic of any interior.

Features

• Tunnel configuration – flames visible from front and back sides
• BEV Technology® – clean and safe ethanol combustion
• Remote & mobile app control – easy flame height adjustment and fuel monitoring
• Concealed touch panel – discreet, user-friendly operation
• Automatic refill system – quick and safe external pump refilling
• 6-stage flame height control – customizable ambiance
• Zero clearance installation – flexible placement options
• SHS compatible – integrates with smart home systems
• Glass screens included – added safety and elegance
• CO2 sensor – ensures safe indoor use

Product Specifications

• Configuration: Tunnel (front and back viewing)
• Burner: FLA4 98” included
• Fuel Type: Fanola bioethanol
• Control Options: Remote, mobile app, touch panel; SHS optional
• Materials: Steel, galvanized steel, toughened glass
• Finish: Black powder coating
• Viewing Area: Width: 2693 mm / 106”, Height: 508 mm / 20”, Depth: 406 mm / 16”
• Burning Time: Max 10 hours
• Tank Capacity: 14.8 L
• Heat Output: Max 22.5 kW
• Minimum Room Cubature: 225 m³

Downloads

• Techcard FLA4 98" [Download]
• Manual FLA4 [Download]
• Manual Tray with Stones [Download]
• Manual Tray with Logs [Download]
• Smart Home System (SHS) [Download]
