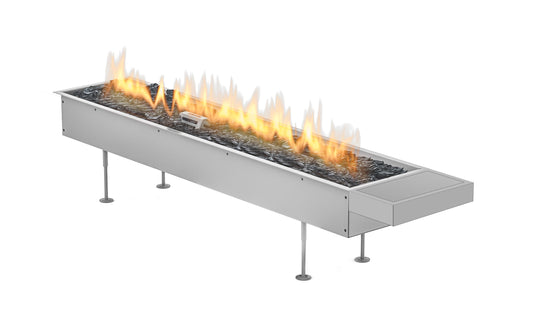

The Planika Galio Insert Manual 1000 Outdoor Gas Burner is a premium linear outdoor gas fireplace insert designed for custom-built fire features in patios, terraces, outdoor kitchens, and hospitality spaces. Combining elegant flame aesthetics with durable construction, this manual outdoor gas burner creates a sophisticated focal point for modern outdoor living environments.
Constructed from high-quality 316 stainless steel and tempered glass, the Galio Insert Manual 1000 is engineered to withstand demanding outdoor weather conditions while maintaining exceptional performance and durability. Compatible with both Natural Gas (NG) and LPG, this outdoor gas burner offers flexible installation possibilities for residential and commercial outdoor projects.
The intuitive manual control system allows you to conveniently adjust the flame height using a simple integrated control knob, providing reliable and straightforward operation. Decorative black diamond stones enhance the flame presentation, delivering a luxurious and contemporary fire feature for any outdoor setting.
With no chimney or flue required, the Planika Galio Insert Manual 1000 offers a clean and streamlined solution for custom outdoor fireplace designs and modern fire pit installations.
Features
- Manual Outdoor Gas Burner: Designed for custom outdoor fire features and linear fireplace installations
- Natural Gas & LPG Compatible: Flexible fuel options for different installation requirements
- Manual Flame Control: Easily adjust flame height with the integrated control knob
- Durable 316 Stainless Steel Construction: Built for long-lasting outdoor durability
- Black Diamond Stones Included: Decorative heat-resistant stones for an elegant flame display
- Tempered Glass Components: Premium materials for enhanced durability and safety
- Weather-Resistant Design: Engineered for outdoor environments and harsh weather conditions
- Linear Modern Flame: Sleek contemporary fire presentation for luxury outdoor spaces
- No Flue Required: Simplified installation without chimney requirements
- Custom Installation Ready: Ideal for outdoor kitchens, patios, terraces, and fire features
Product Specifications
- Product Name: Planika Galio Insert Manual 1000 Outdoor Gas Burner
- Type: Manual outdoor linear gas burner
- Fuel Type: Natural Gas (NG) / LPG
- Application: Outdoor use only
- Heat Output (NG): Max. 9.4 kW / 32,074 BTU/h
- Heat Output (LPG): Max. 11.8 kW / 40,260 BTU/h
- Gas Consumption (NG): Max. 1.22 m³/h / 43.1 ft³/h
- Gas Consumption (LPG): Max. 0.93 kg/h / 2.05 lbs/h
- Gas Pressure (NG): 20 mbar / 8 inWC
- Gas Pressure (LPG): 37 mbar / 14.9 inWC
- Flame Height Regulation: Yes
- Control Type: Manual control knob
- Flue: Not required
- Materials: 316 stainless steel, tempered glass
- Decorative Media: Black diamond stones
- Power Supply: 1x AAA battery (control panel)
- Gas Hose Length: 4 m / 13 ft
- Weight: 13.0 kg / 28.7 lbs
-
Dimensions:
- Width: 1160 mm / 45.7”
- Height: 232 mm / 9.1”
- Depth: 230 mm / 9”
Downloads
- Techcard Galio Insert Manual Burner [Download]
- Manual Galio Insert Manual [Download]
